BEROTEC SUZUKI DR-Z4S / DR-Z4SM 2025+
Description:

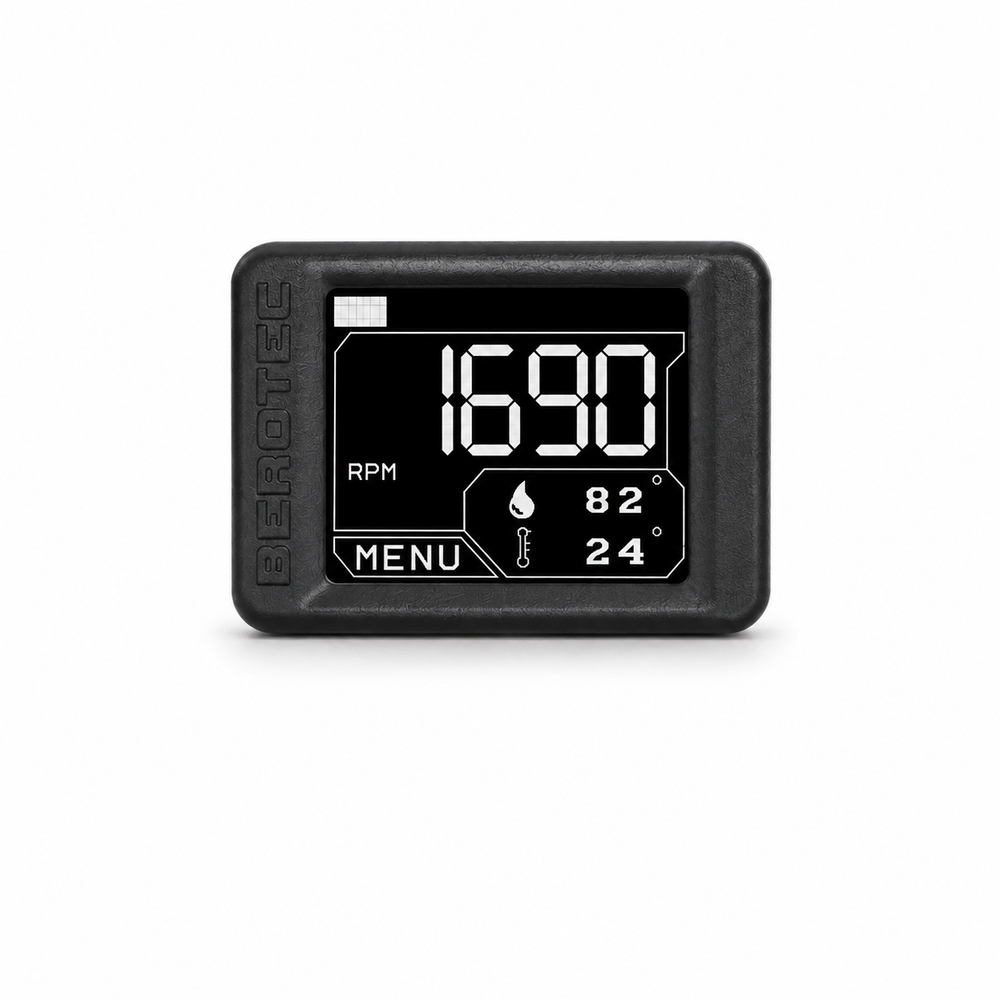

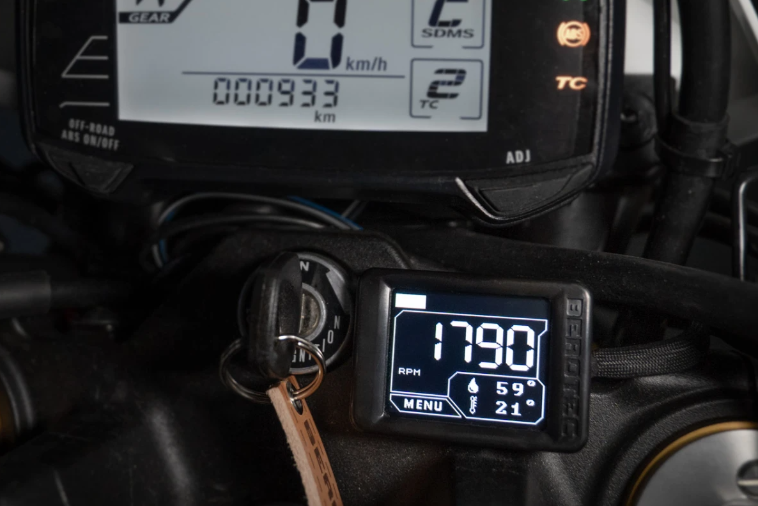

He CUMPAN Cockpit Assistant by BEROTEC It is a complete digital instrument developed specifically for the Suzuki DR-Z4S and DR-Z4SM 2025+adding to the original picture essential information that the motorcycle does not display as standard, such as RPM and engine temperature.
It has a fully configurable color touchscreen, with 6 different designs and 16 colorsallowing the display to be adapted to the pilot's preferences. It also incorporates shift lightambient temperature with ice risk warning and counter for operating hours and start cycles.

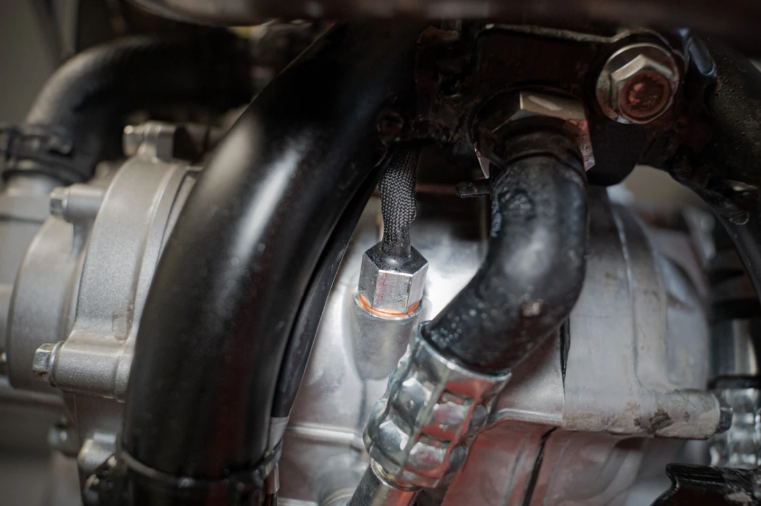

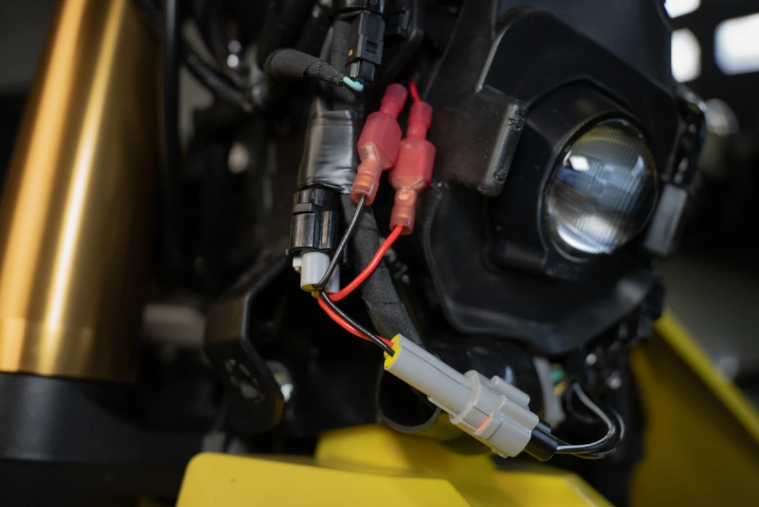

The installation is specifically prepared for the DR-Z4 and It does not require permanent modifications to the original wiring.The kit includes the temperature sensor, allowing the motorcycle to be disassembled and returned to its original configuration. M10×1.25, dedicated 12V connection and RPM signal socket.
Furthermore, the CUMPAN system can be expanded later using optional modules to display parameters such as oil pressure, Lambda/AFR, additional temperatures, or battery voltage.

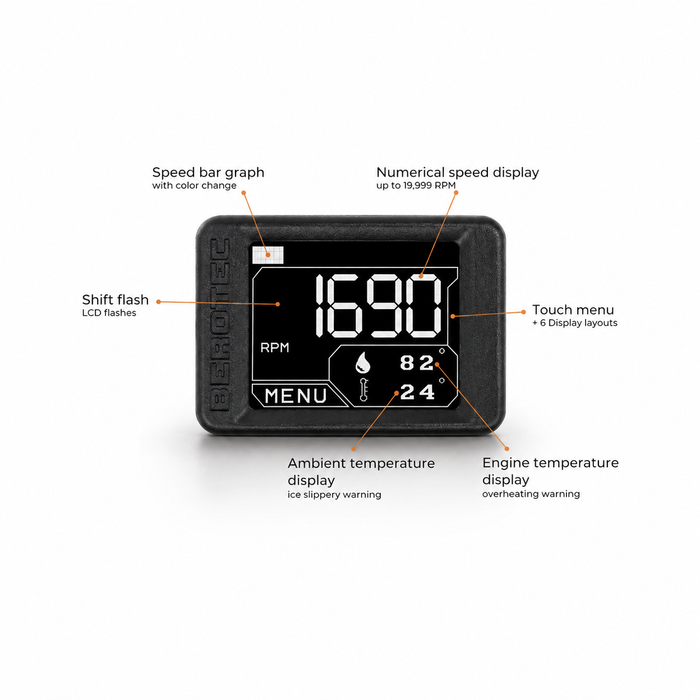

Characteristics
- Digital display color touchscreen.
- Accurate visualization of RPM.
- Visualization of engine temperature.
- Shift Light integrado y configurable.
- Room temperature.
- Warning of possible ice formation.
- Operating hours counter.
- Motor cycle/start counter.
- Configurable RPM and temperature ranges.
- 6 screen designs.
- 16 selectable colors.
- Weatherproof casing.
- Expandable modular system.
- Specific installation without permanent modifications to the wiring.
The kit includes
- CUMPAN Cockpit Assistant.
- Connection cabling.
- Engine temperature sensor M10×1.25.
- Specific connector for power supply 12V switched.
- Derivation for RPM signal.
- Bridas.
- Adhesivo 3M VHB.
- Screen stand not included.
Compatibility
SUZUKI
- DR-Z4S > 2025 - 2026
- DR-Z4SM > 2025 - 2026
